Reflectors and Extrusions for UV Lamps

UV Lamp Reflector Material

REFLECTOR MATERIALS

UV Reflector Material
This affordable reflector material can be cut to size and attached to your reflector housing. The highly polished aluminum sheet is 24" x 48" and 0.020" thick. The ability to install or replace your existing reflectors quickly and inexpensively ensures that your curing unit is always functioning at peak efficiency. Price breaks for multiple sheet order.

Replacement reflectors for Lighthouse Curing Systems from the same high quality material are available for Shuttered, Non-Shuttered, their accompanying end pieces, and V-Shaped Reflectors. Sold by the inch.

ORDERING INFORMATION

Part Number - U004-006 REFLECTOR NON-SHUTTERED (PLEASE ADVISE SIZE REQUIRED)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - U004-007 REFLECTOR SHUTTERD (PLEASE ADVISE SIZE REQUIRED)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - U004-008 EQLH:REFLECTR END SHUTPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - U004-009 EQLH:REFLECTR END NONSPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - U004-010 REFLECTOR V-SHAPEDPRICE QUOTE - email us at sales@epakelectronics.com

REFLECTOR EXTRUSIONS

UV Lamp Reflector Material

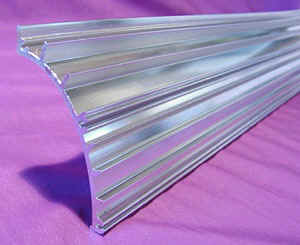

CON-TROL-CURE® UV Lamp Reflectors are ideal for basic UV curing. They are available in 2 elliptical shapes featuring different focal points: 1.75" and 3.5". These elliptical reflectors provide excellent focus and 86% reflectivity for efficient cure. They are especially effective for pigmented coatings. Choose the proper dimension to best suit your equipment needs. The focal point (or focus point) is measured from the center of the lamp to the curing surface.

Note: These reflectors are sold as a 1/4 portion of an ellipse (see image at top of page). Ordering 1 of the below part numbers will provide enough reflector material to create a 5 ft. 1/2 ellipse reflector.

U004-002 Elliptical Reflector; 1.75" focal point; 10 ft. length U004-003 Elliptical Reflector; 3.50" focal point; 12 ft. length

ORDERING INFORMATION

Part Number - U004-002 Elliptical Reflector; 1.75" focal point; 10 ft. lengthPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - U004-003 Elliptical Reflector; 3.50" focal point; 12 ft. lengthPRICE QUOTE - email us at sales@epakelectronics.com
