In most programmable dispensing pumps, typical nozzle designs have been optimized to dispense
consistent pattern and volume. Most of these standard nozzles have a distinct chamfered feature that
reduces surface tension between the needle and material at the point of separation, therefore less
probable to tailing or bridging. Stand-off pin (SOP**) option is available to control the allowable distance
between the needle tip and substrate.
Default Nozzle or needle height HT is .100" / 2.50mm. Specify if otherwise required.
Adaptor & body example.
CG / SG / SN Face

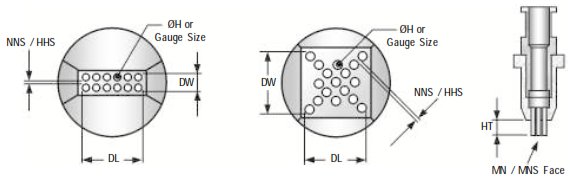

For die size from .100" / 2.50mm and above, the multi-needle (MN) or multi-hole (MH) have found wide acceptance in situations where perfect epoxy coverage is required. Any custom hole/needle layout possible if based on available hole or needle dimensions.

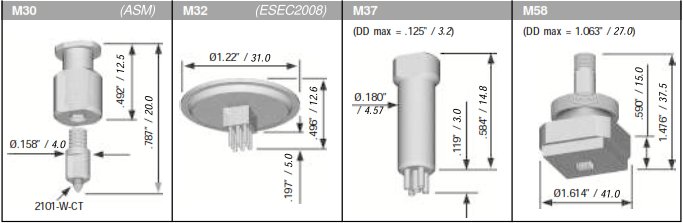

STANDARD ADAPTOR HEADS ( EDT-AH ) AND BODY STYLES (EDT-MXX)
Note: DD is the Die Diagonal and corresponds to the maximum size compatible with a specific body type.
For larger die, please consult technical support personnel at our nearest office for a suitable type.
Adaptor Heads come with 2 types of Luer locks that can be fitted into common epoxy barrel or syringe Luer locks :
Standard Flat Luer (no need to specify)
Double Lead Thread "DLT" Luer (Specify "DLT" after part number)
ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - Epoxy Dispensing Tools (EDT-TIP-STYLE-MATERIAL)
