Ozone detectors for personal & safety monitoring. Many UV curing systems produce ozone that can be a health hazard for all personnel if there is insufficient ventilation. EXTERNAL LINK : Health and Safety Executive (HSE) link for Ozone Health Effects, EXTERNAL LINK : Wikipedia link for Ozone Health Effects. We offer three practical and useful solutions from wearable badges to indicate ozone exposure, to test strips that can be used in specific area's and a more sophisticated monitor that will sound an alarm when high levels are detected.

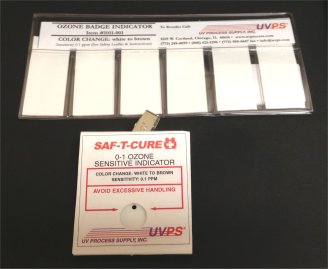

Many UV curing systems produce ozone, which can be a health hazard for machine operators. Poor or insufficient ventilation can result in hazardous ozone concentrations building up in the work area. Our SAFE-T-CURE® Ozone Indicator Badge Set comprises of one wearable badge with 10x replaceable ozone indicator inserts, each sensitive to ozone in increments of .1/part per million within an hour of exposure, which change colour from white to brown. Maximum reading capability of 1 part per million. To be worn by operators or placed near the processing equipment.
The ozone badges measure 65mm wide x 71mm high. Each pack comes with a badge and 10 x refillable ozone detector strips.
Normally available from stock.

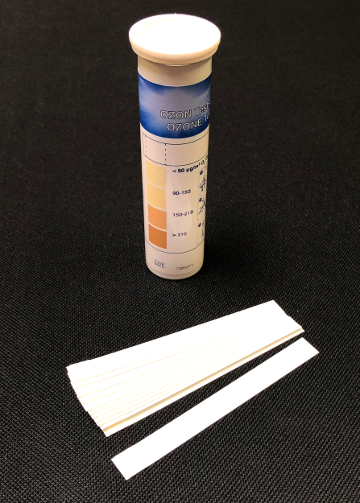

Ozone test strips are a convenient method to measure ozone concentration in the air. Chemically treated plastic strip with test paper sealed at the lower end changes colour to correspond with the present ozone level. Compare the strip's colour against the 4-stage chart to obtain a reading of present conditions.
Ranges and graduation: <90, 90-150, 150-210, >210 ug/m3 ozone
Note: The measuring ranges are valid for a relative atmospheric humidity of 30 to 60%. Humidity values below 30% can cause lower ozone measurements, humidity above 60% can cause higher measurements than are actually present. 12/set.
Normally available from stock.
Protect your employees from ozone in their work environment. This handy, easy-to-use ozone detector allows daily monitoring and control of existing air pollutants.
The Ozone GasAlert Extreme Detector clearly warns of a present ozone hazard. This highly water-resistant unit features an extra-loud audible alarm (95 dB), flashing LED light bars, and built-in vibrator alert users to hazardous conditions. Multiple alarms include: LOW, HIGH, TWA and STEL, each with adjustable setpoints. The large, easy-to-read, backlit LCD display shows continuous, real-time gas concentration.
The Ozone GasAlert Extreme Detector features the same principles of cell-phones and palm pilots--it is a small, powerful, low-cost device. And it's built to last. With cutting-edge sensor technology and the latest in RFI protection, it delivers the lightest and most sophisticated protection from ozone hazards.
Recorded TWA, STEL and Peak exposures can be displayed on demand (in ppm or %vol). Full function self-test of sensor, battery, and circuitry integrity. An easily changed 3V camera battery provides up to two years of continuous operation.
• Simple auto-zero and calibration procedure • Multiple language and datalogging option available • IP 66/67 fully immersible, EMI / RFI resistant housing • Built-in concussion proof boot • Equipped with plug-in, replaceable sensor • Heavy-duty, stainless steel, alligator style belt-clip • Test cap and hose are included
SPECIFICATIONS:• Dimensions: 2”L x 3.75”H x 1.1”D (50mm x 95mm x 28mm) • Weight: 2.9oz (82g) • Classified intrinsically safe by UL (US & Canadian standards) • ATEX certified • IECEx scheme
The Gas Alert Radiometers need calibrating every six months in order to verify they are reading correctly and we offer a service to get them recalibrated. If you want to find out more, please let us know the serial number of your unit and we can get you a price and lead time asap.
GasAlert Ozone Alarm Datasheet
