Flexographic Hand Proofers

UV Flexographic Hand Proofers - PMS and custom colors for UV Flexo and Primographic Inks

Precision Tools for Matching Colour and Coatings

Finally, a quick and precise way to reliably match PMS and custom colours for UV Flexo, and Primographic inks off-press. After relentless hours of research and much time testing the ultimate way to match colour, we finally found what we believe is the ultimate precision colour matching tool. Each of the below hand proofers is sold with 1 anilox roll of your choosing (see the table at bottom.) If more rolls are needed please contact us.

With these UV FLEXO HAND PROOFERS, you can go to press with an anilox/ink combination that delivers the precise colour you need. Commercially compatible colour proofing for both customer colour approval, and spectra-photometer readings.

These industry leading units are compatible with solvent based systems, ensuring a minimal clean-up. The easy take down design allows for quick and easy changing of the engraved anilox rolls. The anilox rolls are platinum laser engraved. The Doctor Blade loads the celIs of the anilox rolls and meters the ink to a repeatable ink film thickness.

Traditional Echocel Junior

A Flexographic hand proofing system incorporating Platinum® laser engraved ceramic anilox technology, steel doctor blade and solvent resistant rubber roll. This system has benefited from years of successful exposure in the field. Designed specifically for water based and solvent inks, this lightweight unit is the standard in the field. Ink path width is 2.75 inch (70mm) Traditional Rolls are engraved at a 60º Hex.

The standard part number N008-040 includes one Standard Anilox roll of your choice, from the chart below. You can also order your system with three standard anilox rolls (N008-040A), or even 6 standard anilox rolls (N008-040B).

Part Number - N008-040 PROOFER:ECHOCEL JR. TRADITIONAL (1 x Anilox Roll)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-040A PROOFER:ECHOCEL JR TRAD (3 x Anilox Rolls)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-040B PROOFER:ECHOCEL JR TRAD (6 x Anilox Rolls)">PRICE QUOTE - email us at sales@epakelectronics.com

Spares & Additional Anilox Rolls:

Part Number - N008-044 PHANTOM/JR STOCK ROLL">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-045 PHANTOM/JR CUSTOM ROLL">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-049 PHANTOM/JR RUBBER ROLLER 45DURO">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-049A PHANTOM/JR UV RUBBER ROLLER 55DURO">PRICE QUOTE - email us at sales@epakelectronics.com

Phantom Proofer

Our newest model, the Phantom Proofer, is the ultimate proofer to increase pressroom efficiency! Manufactured with many of the same quality components and high standards as the Echocel Junior, this unit improves upon that design. Its quick change anilox roll mechanism and doctor blade allow for easier clean up, increasing efficiency. The ultra lightweight design features less replacement parts and built-in bearings. Ink path width is 2.75 inch (70mm)

Part Number - N008-041 PHANTOM PROOFER - (includes 1 x Anilox Roll)PRICE QUOTE - email us at sales@epakelectronics.com

Spares & Additional Anilox Rolls:

Part Number - N008-044 PHANTOM/JR STOCK ROLL">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-045 PHANTOM/JR CUSTOM ROLL">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-049 PHANTOM/JR RUBBER ROLLER 45DURO">PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - N008-049A PHANTOM/JR UV RUBBER ROLLER 55DURO">PRICE QUOTE - email us at sales@epakelectronics.com

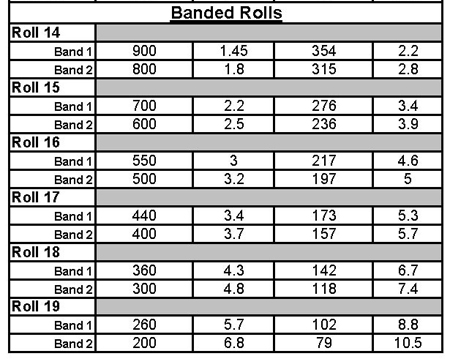

Anilox Roll Options

Anilox Roll Options ChartAnilox Roll Options Chart

Ordering Information: Echocel Jr. Traditional

Part Number:

N008-040 ECHOCEL JR.
N008-040A ECHOCEL JR
N008-040B ECHOCEL JR

N008-044 PHANTOM/JR
N008-045 PHANTOM/JR
N008-049 PHANTOM/JR
N008-049A PHANTOM/JR


Description:

Inc 1 x Anilox Roll
Inc 3 x Anilox Rolls
Inc 6 x Anilox Rolls

STOCK ROLL
CUSTOM ROLL
RUBBER ROLLER 45DURO
UV RUBBER ROLLER 55DURO

Ordering Information: Phantom Proofer

Part Number:

N008-041 PHANTOM PROOFER

N008-044 PHANTOM/JR
N008-045 PHANTOM/JR
N008-049 PHANTOM/JR
N008-049A PHANTOM/JR


Description:

Inc 1 x Anilox Roll

STOCK ROLL
CUSTOM ROLL
RUBBER ROLLER 45DURO
UV RUBBER ROLLER 55DURO
