45CK INLINE GROOVE AUTOBONDING TOOL (45CK STYLE)

Orthodyne Equivalent Large Wire Inline Groove Ho-Hole Wedge bonding tool

45CK Inline Groove Autobonding 45° V Groove Large Wire Wedge Bonding Tools

The inline groove was one of the most widely used foot designs for large wire bonding. The bond deformation width is smaller than that seen with a concave foot design. The inline groove design was the first step away from the concave foot, and primarily utilizes a cutting tool for second bond termination.

Autobonding tools help guide the wire directly under the foot. This design is commonly used where L-notch tools experience wire control problems where different bonding heights and extreme long wires are bonded.

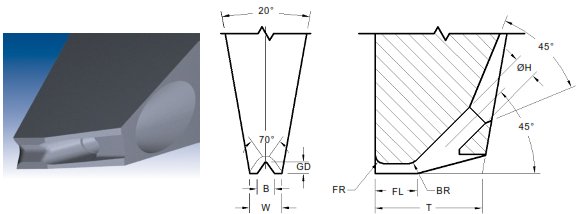

45ck Style Deep V Inline Groove Autobonding Wedge Tool Standard Size Chart

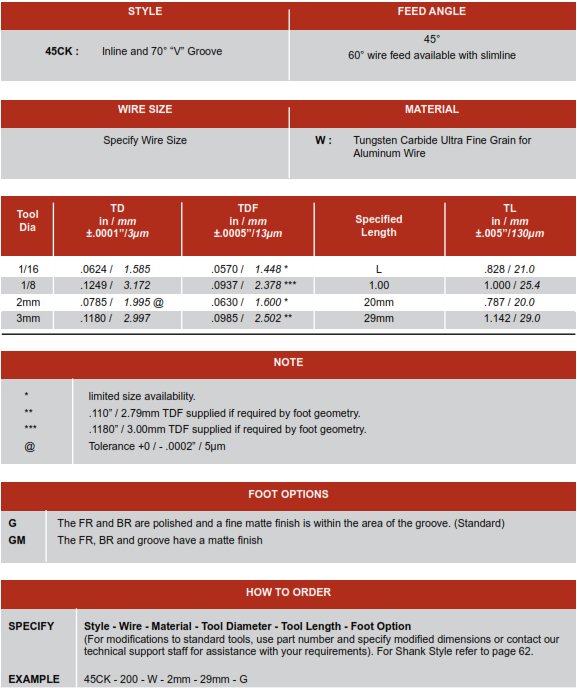

45ck Style Deep V Inline Groove Autobonding Wedge Tool How to order and part options selection chart

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - 45CK Large Wire Inline Groove Autobonding WedgePRICE QUOTE - email us at sales@epakelectronics.com

45CK Large Wire Inline Groove Autobonding Datasheet
SPT Wedge Shank Styles Datasheet
