UV Filter Sleeves and Tubes

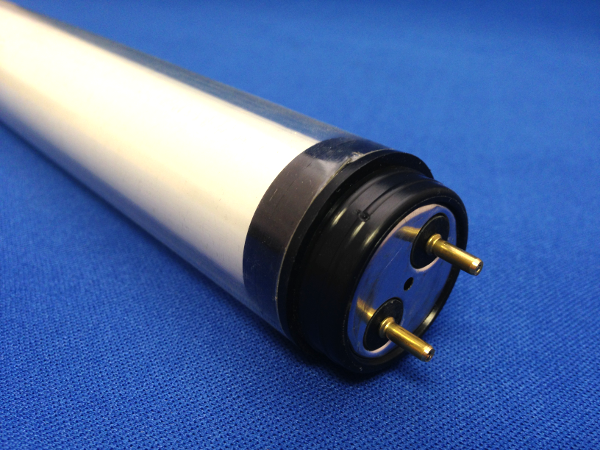

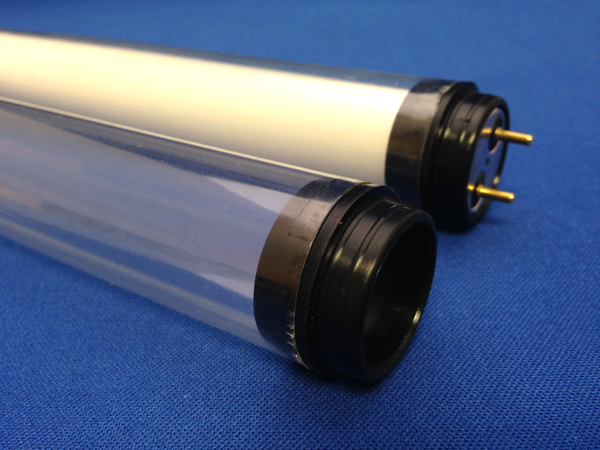

Rigid UV T5, T8 and T12 Filter Covers

Reusable CON-TROL-CURE® T5, T8, and T12 UV FILTER TUBES encase existing fluorescent lamps and filter UV radiation up to 395nm when used with 400 M.A. lamps. Insulate and improve lighting efficiency at low temperatures. High tensile polycarbonate protects people and equipment from lamp shattering. Furnished with end caps that fit snugly between lamp and sleeve. Release channel allows gases to disperse slowly into the atmosphere. Perfect for laboratories, museums, galleries and other areas where UV light can deteriorate materials. Available with T8, or T12 diameters in 4' lengths of clear, red, or amber and the end caps are included. Also now available with T5 diameter in 4' lengths of clear or amber with end caps.

T8 bulbs have a diameter of 1", T12 bulbs are 1½". Clear T8 and T12 tubes are also available in 8' lengths by custom freight carrier only.

NEW !! - AMBER NOW AVAILABLE IN TWO SHADES!. The original amber part number F007-043 has been re-named Amber/Yellow. It's still the same product, just with a new name. The new amber part number F007-043A is called Dark Amber. This shade of amber has more red which pushes the 99.9% filtration all the way out to 530nm.

NEW !! - T5 CLEAR NOW AVAILABLE IN SPECIAL HIGH TEMPERATURE DESIGN!

This patented end cap design resists the high temperatures that 54 watt T5 HO style tubes can generate. The cap is longer with a special flair pattern which allows for proper heat dissipation. New end caps are made from a special UV Stabilized polycarbonate with a point of deflection of 226°F (108°C)

T5 Rigid UV Filter Sleeves

F007-150 TUBE T5 4' CLEAR
F007-150HO TUBE T5 4' CLEAR H.O.
F007-040A TUBE T5 4' DARK AMBER
F007-040CA TUBE CAPS FOR T5 4' SLEEVES

T8 Rigid UV Filter Sleeves

F007-035 UV FILTER TUBE T8 4' CLEAR
F007-036 UV FILTER TUBE T8 8' CLEAR
F007-043 UV FILTER TUBE T8 4' AMBER
F007-043A UV FILTER TUBE T8 4' DARK AMBER
F007-043CAP UV FILTER TUBE CAP T8
F007-041 UV FILTER TUBE T8 4' RED
F007-151HO UV FILTER TUBE T8 4' CLEAR H.O.
F007-003CAPS FILTER TUBE END CAPS T8

T12 Rigid UV Filter Sleeves

F007-033 UV FILTER TUBE T12 4' CLEAR
F007-034 UV FILTER TUBE T12 8' CLEAR
F007-042 UV FILTER TUBE T12 4' RED
F007-043UV UV FILTER TUBE T12 4' DARK AMBER
F007-012CAPS UV FILTER TUBE END CAPS T12

Flexible UV Blocking Sleeves (T8 & T12)

CON-TROL-CURE® UV Filter Sleeves are flexible plastic filters designed to fit over any size diameter standard fluorescent light tube. Amber Sleeves filter UV light up to 500nm, Clear Sleeves up to 400nm. No tools are required for installation. The UV Inhibitor in UV Filter Sleeves never wears out and never needs replacement. Made of polyester and can withstand high heat. Available in 4' lengths in clear or amber. Use 2 sleeves to cover an 8' fluorescent bulb.

F007-001 4' CLEAR FILTER SLEEVEPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - F007-003 4' AMBER FILTER SLEEVEPRICE QUOTE - email us at sales@epakelectronics.com

UV226 UV Filter Sleeves

Modern lighting can cause eye strain and headaches caused by bright lights in offices, schools and buildings etc. Many of these new lighting systems offer substantial energy and cost savings but at the expense of discomfort to those that have to work in the environment.

Our corrective filter sleeves are the answer; they are simple to install and can reduce glare and ultra violet transmission. The UV226 clear ultra violet filters reduce the UV emission by 99% and do not change the actual appearance of the light being emitted.

In addition, we can offer sleeves for reducing lighting glare that are available in three grades:
Filter 209 reduces light emission by 1 light stop (25%)
Filter 210/N reduces light emission by 2 light stops (50%)
Filter 211/N by 3 light stops (75%) approximately.

Each can be further enhanced to also reduce 99% of ultra violet emissions, thus creating an ideal working environment.

226 Clear UV Strongly absorbs UV light (99%)
209 .3ND Neutral Density Reduces light 1 stop (25%)
210/N .6ND Neutral Density Reduces light 2 stops (50%)
211/N .9ND Neutral Density Reduces light 3 stops (75%)

Correction filters are also available in over 40 special order colours

UV226-CLEAR-T4 (12mm Diameter)

UV226-T4-CLEAR 12mm Diameter UV Filter Sleeve (Please advise size and quantity required)

UV226-CLEAR-T5 (16mm Diameter)

UV226-T5-300-CLEAR 16mm Diameter UV Filter Sleeve (Please advise quantity required)
UV226-T5-600-CLEAR 16mm Diameter UV Filter Sleeve (Please advise quantity required)
UV226-T5-750-CLEAR 16mm Diameter UV Filter Sleeve (Please advise quantity required)
Part Number - UV226-T5-850-CLEAR 16mm Diameter UV Filter Sleeve (Please advise quantity required)

UV226-CLEAR-T8 (26mm Diameter)

Part Number - UV226-T8-600-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)
Part Number - UV226-T8-750-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)
Part Number - UV226-T8-900-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)

UV226-CLEAR-T12 (38mm Diameter)

Part Number - UV226-T12-600-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)
Part Number - UV226-T12-750-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)
Part Number - UV226-T12-900-CLEAR 26mm Diameter UV Filter Sleeve (Please advise quantity required)

UV226 PL Lamp UV Filter Sleeves

Our corrective filter sleeves are the answer; they are simple to install and can reduce glare and ultra violet transmission. The UV226 clear ultra violet filters reduce the UV emission by 99% and do not change the actual appearance of the light being emitted. For PL lamps, we use a sock type filter that is closed on the end of the sleeve.

UV226-PL(Various Sizes and Types Available)

Part Number - UV226-PL-CLEAR PL lamp UV filter sleeve (Please advise lamp manufacturer, part number and quantity required. If this information is not available we need to have an accurate measurement of the lamp size)
For others types and bespoke sizes please contact us - these can be made to order easily.

Ordering Information: Rigid UV Filter Sleeves

Part Number:

F007-150 T5
F007-150HO T5
F007-040A T5
F007-040CA T5 Caps

F007-035 T8
F007-036 T8
F007-043 T8
F007-043A T8
F007-043CAP
F007-041 T8
F007-151HO T8
F007-003CAPS T8 Caps

F007-033 T12
F007-034 T12
F007-042 T12
F007-043UV
F007-012CAPS


Description:

Tube T5 4' Clear
Tube T5 4' Clear H.O.
Tube T5 4' Dark Amber
End Caps For T5 4' Tubes

Tube T8 4' Clear
Tube T8 8' Clear
Tube T8 4' Amber
Tube T8 4' Dark Amber
T8 End Cap
Tube T8 4' Red
Tube T8 4' Clear H.O.
End Caps For T8 Tubes

Tube T12 4' Clear
Tube T12 8' Clear
Tube T12 4' Red
Tube T12 4' Dark Amber
End Caps For T12 Tubes

Datasheet:

Ordering Information: Flexible UV T8 & T12 Filter Sleeves

Part Number:

F007-001 4' Clear
F007-003 4' Amber

Description:

4' Clear Filter Sleeve
4' Amber Filter Sleeve

Email Me A Price:

Email Quote
Email Quote

Datasheet:

Ordering Information: UV226 Filter Sleeves

Part Number:

UV226-T5-300-CLEAR
UV226-T5-600-CLEAR
UV226-T5-750-CLEAR
UV226-T5-850-CLEAR

UV226-T8-600-CLEAR
UV226-T8-750-CLEAR
UV226-T8-900-CLEAR

UV226-T12-600-CLEAR
UV226-T12-750-CLEAR
UV226-T12-900-CLEAR

Description:

16mm Dia.UV Filter Sleeve
16mm Dia.UV Filter Sleeve
16mm Dia.UV Filter Sleeve
16mm Dia.UV Filter Sleeve

26mm Dia.UV Filter Sleeve
26mm Dia.UV Filter Sleeve
26mm Dia.UV Filter Sleeve

38mm Dia.UV Filter Sleeve
38mm Dia.UV Filter Sleeve
38mm Dia.UV Filter Sleeve

Datasheet:
