Different Capillary Taper Styles - Side Relief and Vertical Bottle Neck Relief

Capillary Taper Styles - Side Relief and Vertical Bottle Neck Relief from SPT Capillary Taper Styles - Side Relief and Vertical Bottle Neck Relief Capillaries from SPT

Capillaries for special deep access types of packaging application are available. The uniqueness of the taper design is dependent upon the die and package orientation. These capillaries provide vertical clearance between adjacent high loop profile and die edge.

Several different taper styles are available: One Side Relief, Double Side Relief, 90 Degree Double Side Relief and Vertical Bottle Neck.

Different taper designs for deep access and difficult access wire bonding from SPT

Different taper design wire bonding tools from SPT


ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)

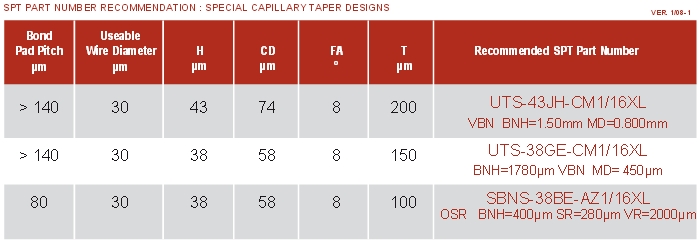

Part Number - Different Taper Design Capillaries for Deep Access or Confined Area bonding applicationsPRICE QUOTE - email us at sales@epakelectronics.com
