RTR Rubber Tip Die Pickup Tools With Replaceable Rubber Tips for die bonding, handling and component placement from SPT.

Rubber Tip Replaceable Pick-up Tools

The black Nitrile rubber (NBR) is, since the beginning of chip assembly applications an appreciated base material to produce replaceable tip. Despite the emergence of other materials ( see our PCTR, BPCT or FCTR), the rubber has conserved properties giving satisfaction and flexibility. SPT proposes a variety of rubber tips which are finished to the desired sizes.

Rectangular Tip Rubber RTR, NBR Rectangular Tip Rubber RTR NBR, Conical Tip Rubber, CTR NBR

When and Why to use CTR or RTR : Colour Black
Heat Resistance up to 100° C
Static Dissipative
Customer Shape on Request

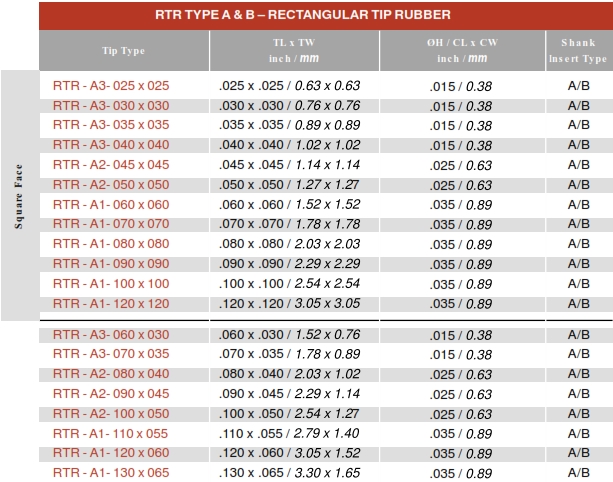

The range of available sizes starts with a minimum size of 025x025 up to 400x400 mils

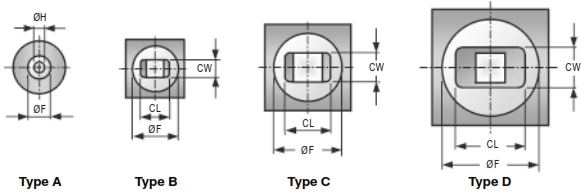

Every type is build from a family of 4 distinct types identified as: A B C D
The types A and B are compatible with the shank having the square insert type A/B while the others are compatible with any shank having the square insert type C/D
