Pickup Tips for Thin & Fragile Die RTRD Series

For some applications, like handling large thin die, the preferred vacuum cavity is different than the traditional round or rectangular shape found on common rubber tips. The desired design is rather a cross groove or X sign or a multi hole configuration. This feature prevents the die to warp inside the vacuum cavity and to cause poor wetting or incomplete epoxy coverage during die placement. The outer shape of the tip depends on the size of TL/TW:2 or 4 tapered walls or vertical walls. Various custom vacuum channel or cavity configurations are possible on request.

RTR-D2 Rectangular tip tools for fragile or delicate die and parts

RTR-D2-CCG:RECTANGULAR TIP RUBBER WITH DOUBLE Y CROSS-GROOVE
RTR-D3-CCG:RECTANGULAR TIP RUBBER WITH CROSS-GROOVE
RTR-D3-MH:RECTANGULAR TIP RUBBER WITH MULTI-HOLE

The Maximum TL or TW dimension for RTR-D2-CG , RTR-D3-CG and RTR-D3-MH is .472” / 12 mm.
By default, the following value will be used: GW=0.8mm, GD=0.4mm, WT=0.5mm, H=GW, GA=Diag.
By default, the quantity of holes for MH tip configuration is 4.

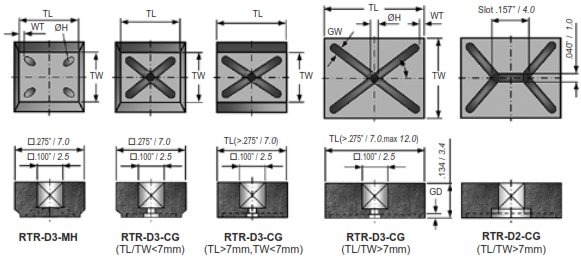

RTR-D2 Rectangular tip tools for fragile or delicate die and parts Tool Dimension Information
The Maximum TL or TW dimension for RTR-D2-CG , RTR-D3-CG and RTR-D3-MH is .472” / 12 mm.
By default, the following value will be used: GW=0.8mm, GD=0.4mm, WT=0.5mm, H=GW, GA=Diag.
By default, the quantity of holes for MH tip configuration is 4.
