Cabled Detector Radiometers for UV Lamp Intensity Measurement

We have several different cabled detector radiometers available. The Silverline and Versaprobe Radiometers listed below are our most popular models.

CON-TROL-CURE® SILVERLINE UV RADIOMETER

The Silverline Radiometers are rugged, probe-style UV measurement devices. These simple-to-operate radiometers measure UV Intensity (mW/cm²).

The Silver Line radiometers have 2 resolution settings. The “x1” setting displays UV intensities from 0 to 19.99 mW/cm², while the “x10” setting displays from 0 to 199.90 mW/cm². The rugged metal-housed sensor is capable of withstanding high temperatures and moderate shock. While exposed to the heat of UV curing lamps, the Silver Line radiometer probe can withstand 110°C (230°F) for up to 10 seconds. The temperature of the housing should not exceed 45°C (113°F).

An Auto Off function shuts down the unit after one minute of inactivity to save battery energy.

Th Silver Line has re-chargeable batteries and come with a battery charger.

The Silver Line series offers 4 models, each measuring a different UV wavelength:

• UV-A: 315 - 400nm
• UV-B: 280 - 315nm
• UV-C: 230 - 280nm
• Full UV: 230 - 410nm
SPECIFICATIONS:
• Max. Power Input: Sensor input to 1,000 W/cm²
• Display: LCD, 4 digits
• Range x1: 0 - 19.99 mW/cm²
• Range x10: 0 - 199.90 mW/cm²
• Base Accuracy: ±5%
• Power Source: 2 x 3.6V Lithium Battery
• Dimensions (housing): 5.5"H x 2.75"W x 0.5"D (140 x 70 x 13mm)
• Dimensions (sensor): 1.6"Diameter x 0.4"D (40 x 10mm) - 1m length
• Weight: 200 g
ORDERING INFORMATION

SILVER LINE RADIOMETERS

Part Number - M007-150 RADIOMETER:SILVER LINE UVA

Part Number - M007-151 RADIOMETER:SILVER LINE UVB

Part Number - M007-152 RADIOMETER:SILVER LINE UVC

Part Number - M007-153 RADIOMETER:SILVER LINE ALLUV

Part Number - M007-191 RADIOMETER MTR DIAZO UV-V

Part Number - M007-192 RADIOMETER UV-A MTR SILVER

Part Number - M007-204 RADIOMETER UV-V DI SILVER SPARE

Part Number - M007-205 RADIOMETER UV-A SILVER SPARE

Part Number - M007-206 RADIOMETER UV-B SILVER SPARE HD

Part Number - M007-207 RADIOMETER UV-C SILVER SPARE HD

Part Number - M007-208 RADIOMETER UV SILVER SPARE HD

VERSAPROBE PRO INTEGRATOR & COMPORT RADIOMETERS

+ UV-intensity mW/cm2
+ UV-peak intensity mW/cm2
+ UV-dose mJ/cm2
+ USB ComPort (Option)
+ Graphic chart on computer (Option)
+ Re-chargeable accu and charger

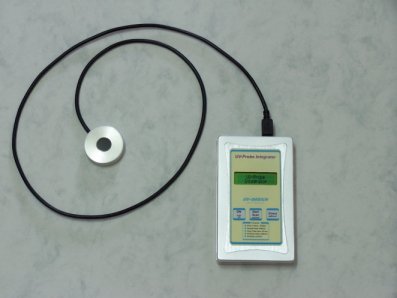

The CON-TROL-CURE® VERSAPROBE PRO RADIOMETERS are a self-contained, high quality UV measuring instrument. It is designed to measure and display UV energy in mW/cm2. An additional function is the scan of the peak value of UV-intensity in mW/cm2 and to measure the UV dose in mJ/cm2 within a pre-set period of 30/60 seconds. In the standard version it is equipped with one UV sensor for the measuring of:

Full UV spectral area 230 – 410 nm (Standard)

Due to its UV sensor and the integrated microprocessor the UV-Probe Integrator can measure and display the peak UV-intensity of the full UV spectrum (mW/cm2). Additionally, this UV-Probe Integrator is calculating the UV-dosage (mJ/cm2) of the UV energy supplied during the time of exposure of one measuring cycle. The UV-dosage is calculated as the total Integral of UV-dosage over the full UV spectral bands.

The removable, probe-type sensor is connected to the base unit by a cable of approx. 1 meter (40”) length. In the function “Direct” the actual UV-energy in mW/cm2 supplied to the sensor is measured. The function “Scan” will start a 30/60 second measuring cycle of both, UV-intensity and UV-dose. After completion of the measuring cycle the measuring results can be scrolled through on the built in 2 x 16 digit LCD display. A special AUTO-OFF feature that turns off the unit automatically after one minute serves as energy saving and extension of the battery service life.

As an option, this microprocessor integrator is available with an USB ComPort and an evaluation software for downloading the data to a computer to show, edit and store a history of the measuring results of the entire measuring cycle as graphic and numeric charts (mW/cm2) and (mJ/cm2) The UV-Probe Microprocessor Integrator is available in five different measuring ranges:

Probe Integrator

UV-Probe Integrator, Type 1 UV-V (Diazo) 350 – 460 nm
UV-Probe Integrator, Type 2 UV-A 315 – 410 nm
UV-Probe Integrator, Type 3 UV 230 – 410 nm (STD)
UV-Probe Integrator, Type 4 UV-B 280 – 315 nm
UV-Probe Integrator, Type 5 UV-C 230 – 280 nm

Comport Probe Integrator

UV-ComPort Probe Integrator, Type 1 UV-V (Diazo) 350 – 460 nm
UV-ComPort Probe Integrator, Type 2 UV-A 315 – 400 nm
UV-ComPort Probe Integrator, Type 3 UV 230 – 410 nm (STD)
UV-ComPort Probe Integrator, Type 4 UV-B 280 – 315 nm
UV-ComPort Probe Integrator, Type 5 UV-C 230 – 280 nm

TECHNICAL DATA

Spectral range: UV 230 – 400 nm (Standard) or other
Max. Power Input 0 to 5,000 mW/cm2
Display: LCD, 2x16 digits
Display range: 0 to 60,000 mJ/cm2
Measuring range: 0 to 2,000 mW/cm2
Sampling rate: 0.005 sec (200/sec)
Recording cycle: 30 sec.
Power source: 2 x 3.7 V LiPO Accu
Power consumption: 20 µA
Accu service life: approx. 1,000 charging cycles
Dimensions: 5.5” (120 mm) x 3” (75 mm) x 0.4”(10 mm)
Weight: approx. 6 ounce (150 g)
Dimensions of probe: Ø 1.5” (40 mm) x 0.4” (10 mm)
Length of probe cable: approx. 40” ( 1 meter )
Operating temperature: 0 to 113° F / 0 to 45° C
Base Accuracy: ± 5 %

While measuring, the UV-Probe Integrator can withstand max. 230° F / 110° C for up to 10 seconds. The temperature of the housing should not exceed 113° F / 45° C. Because of uneven radiation distribution of the UV light source and different type of construction of the measuring devices by different manufacturers, different readings may appear under the same measurement conditions.

CALIBRATION

In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after change of battery. PTB traceable calibration with certificate
