Micropuck Compact Sensor Radiometers (Single and Multiple Channel)

Radiometer with compact uv sensors - the Micropuck Multi

MICRO PUCK (SERIES) Compact Sensor Radiometers

The CON-TROL-CURE MICRO PUCK™ (SERIES) RADIOMETER is a unique instrument that enables UV measurement in extremely difficult to access environments. Compact UV sensors make it possible to measure UV Dose even in most confined UV curing units. The MICRO PUCK system consists of two parts: a hand-held base unit with a display and a UV sensor. Simply plug the sensor into the base unit to view the measured results. The MICRO PUCK is available in four different measuring ranges: UV-A, UV-B, UV-C, UV-V, or Full UV.

The MICRO PUCK comes complete with the sensor shape of your choice (round or rectangular) and in the UV range you desire. *NOTE: this model only works with the one sensor it ships with. If you need a multi sensor compatible base , choose the MICRO PUCK MULTI below.

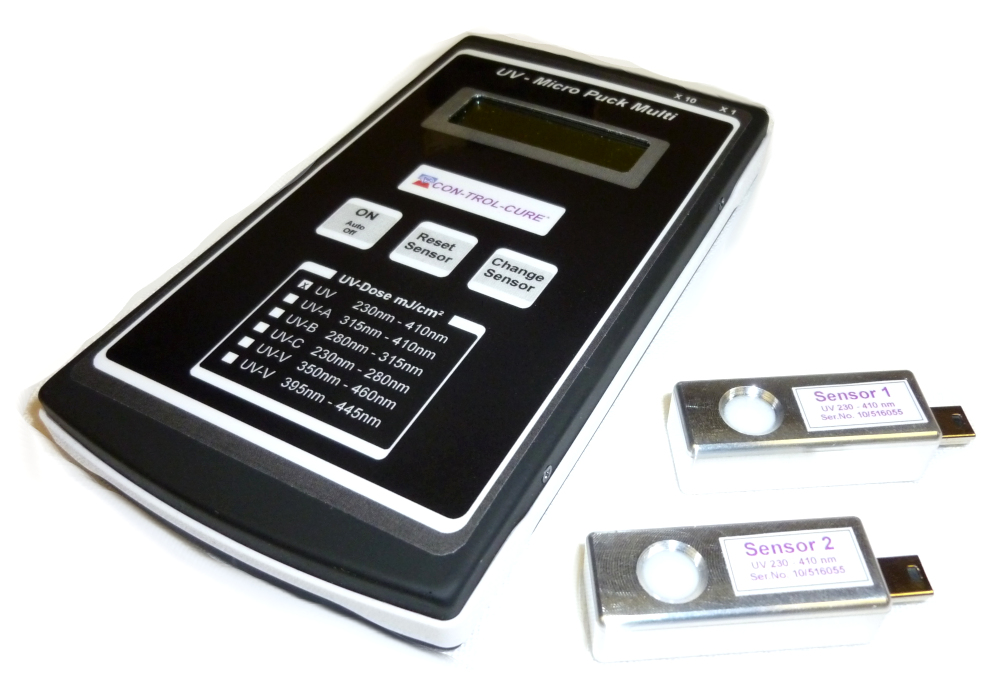

While the MICRO PUCK can only read from the one sensor it ships with, the MICRO PUCK MULTI, can accommodate up to 8 sensors that read from the same base unit. This system can combine sensors from different UV spectral ranges, allowing for full spectrum, 3-D UV evaluation. The MICRO PUCK MULTI ships with 1 sensor in the shape of your choice (round or rectangular) and in the UV range you desire. For additional sensors (up to 8 total will work with this unit), simply select the type your need.

Both models come with a re-chargeable battery and charger

The sensors are available as either a rectangular or a round model. Both sensors work with both base units and are available in each of the 4 different UV measuring ranges.

SPECIFICATIONS:

Spectral Range: UV-A, UV-B, UV-C, UV-V, or Full UV
Max. Power Input: 0 to 5,000 mW/cm²
Display Range: 0 to 1,999 mJ/cm² (standard) or 0 to 19,990 mJ/cm² (x10 type) Power Source: 2 x 2,000 hrs 3.6 V Lithium Battery
Sensor Max. Temp.: 110°C (230°F) for up to 10 seconds
Dimensions of Reader: 5.5” x 3” x 0.4” (140 x 75 x 10mm)
Dimensions of Sensor: Rectangular: 1.5” x 0.6” x 0.5” (40 x 15 x 12mm)
Round: Diameter 1.5” x 0.35” (40 x 9mm)
Round: (only M007-144) Diameter 1.5” x 0.25” (40 x 6mm)

ORDERING INFORMATION
Part Number - M007-130 RADIOMETER:MICROPUCK FULL UVPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-131 RADIOMETER:MICROPUCK UVAPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-132 RADIOMETER:MICROPUCK UVBPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-133 RADIOMETER:MICROPUCK UVCPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-135 RADIOMETER:MICROMULTI ALL UVPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-136 RADIOMETER:MICROMULTI UVAPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-137 RADIOMETER:MICROMULTI UVBPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-138 RADIOMETER:MICROMULTI UVCPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-138 RADIOMETER:MICROMULTI UVCPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-139C MICROPUCK MULTICHARGER PSUPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-140 RADIOMETER:SENSOR RECTANGULAR ALLUVPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-141 RADIOMETER:SENSOR RECTANGULAR UVAPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-142 RADIOMETER:SENSOR RECTANGULAR UVBPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-143 RADIOMETER:SENSOR RECTANGULAR UVCPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-144 RADIOMETER:SENSR ROUND ALLUVPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-145 RADIOMETER:SENSOR ROUND UVAPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-146 RADIOMETER:SENSOR ROUND UVBPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-147 RADIOMETER:SENSOR ROUND UVCPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-506 RADIOMETER UV SENSOR ROUNDPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-507 RADIOMETER WRLS SENSOR T240PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-508 RADIOMETER WRLS SENSOR T260PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-509 RADIOMETER WRLF SENSOR T200PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-510 RADIOMETER UV-MICROPUCK IIPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-511 RADIOMETER UV-MICROPUCK MULTPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-512 RADIOMETER UV-SENSORS RECTANGULARPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-513 RADIOMETER UV SENSORS RECTANGULARPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-514 RADIOMETER UV SENSORS RECTANGULARPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-515 RADIOMETER WRLS SENSOR RECTANGULARPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-516 RADIOMETER WRLS UV SENSOR RTPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-517 RADIOMETER WRLS SR. T1 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-518 RADIOMETER WRLS SR T2 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-519 RADIOMETER WRLS SR T3 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-515 RADIOMETER WRLS SENSOR RECTANGULARPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-516 RADIOMETER WRLS UV SENSOR RTPRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-517 RADIOMETER WRLS SR. T1 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-518 RADIOMETER WRLS SR T2 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-519 RADIOMETER WRLS SR T3 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-520 RADIOMETER WRLS SR T4 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-521 RADIOMETER WRLS SR T5 50X13PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-522 RADIOMETER WRLS SR T1 40X35PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-523 RADIOMETER WRLS SR T2PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-524 RADIOMETER WRLS SR T3PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-687 RADIOMETER UV-INT MPUCK T5PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-688 RADIOMETER UV MULTI PUCK T5PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - M007-689 RADIOMETER UV-V SENSOR RECTPRICE QUOTE - email us at sales@epakelectronics.com
