BACK CONTACT CHIP RESISTORS (EMSBC, DRBC3, DRBC4 & MSBC)

Back Contact Resistors - Single and Dual Configurations

BACK CONTACT CHIP RESISTORS

Mini-Systems, Inc. Back Contact chip resistors offer the high stability, low noise and low TCR of Mini-Systems proven Thin Film technology while providing the design engineer with a space saving alternative in hybrid designs. Each Back Contact Resistor requires only a single wire bond to the top side of the chip with the bottom connection made by eutectic or conductive epoxy attachment to associated circuitry.

The EMSBC configurations are single resistors available in several case sizes and a wide resistance range.

The DRBC configuration offers two resistors on a single chip and is ideal for use in applications where divider networks with closely matched tolerances and TCR are critical.

The older MSBC2 series will continue to be available with the size and characteristics matching the EMSBC2 series. Available with aluminium bond pads only.

Back Contact Resistors - Single and Dual Configurations

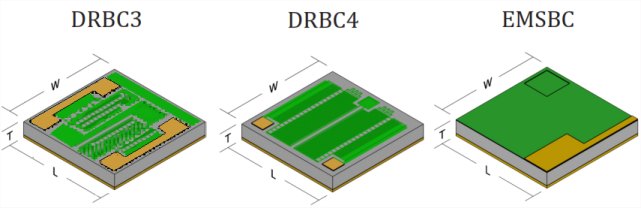

CASE SIZE

STYLE EMSBC

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

RESISTANCE MIN

RES. OPT. TCR 100ppm

RES. MAX TCR 150ppm

POWER RATING

0202

1

0.015”(0.381)

0.015”(0.381)

0.010”(0.254)

5 Ohm


200K

1M

50mW

0202

2

0.020”(0.508)

0.020”(0.508)

0.010”(0.254)

5 Ohm

320K

1.6M

250mW

0303

3

0.030”(0.762)

0.030”(0.762)

0.010”(0.254)

5 Ohm

800K

4M

250mW

0404

35

0.035”(0.889)

0.035”(0.889)

0.010”(0.254)

5 Ohm

1.3M

6.5M

250mW

0502

115

0.050”(1.270)

0.025”(0.635)

0.010”(0.254)

5 Ohm

1.3M

6.5M

250mW

0603

63

0.060”(1.524)

0.035”(0.889)

0.010”(0.254)

5 Ohm

2.4M

11M

500mW

1005

120

0.100”(2.540)

0.050”(1.270)

0.010”(0.254)

5 Ohm

9M

45M

500mW

1206

126

0.126”(3.200)

0.063”(1.524)

0.010”(0.254)

5 Ohm

10M

50M

750mW

Dual Resistor Back Contact Series

CASE SIZE

STYLE EMSBC

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

RESISTANCE MIN

RES. OPT. TCR 100ppm

RES. MAX TCR 150ppm

POWER RATING

0404

4

0.040”(1.060)

0.040”(1.060)

0.010”(0.254)

5 Ohm


1.2M

6M

125mW

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSBC SERIES BACK CONTACT RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - EMSBC SERIES BACK CONTACT RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - DRBC3 SERIES DUAL BACK CONTACT RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - DRBC4 SERIES DUAL BACK CONTACT RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Back Contact Resistors Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.

ROHS Compliant Lead Free Solder Available
