THICK FILM CHIP ATTENUATORS (MSA SERIES)

Thick Film Chip Attenuators (MSA Series) from Mini-Systems

MSA SERIES

Wire and ribbon bondable and Flipchip thick film chip attenuators, printed and fired on 96% alumina. Provides attenuation accuracy for frequencies through 10 Ghz. Double layer terminations provide additional bonding surface. Abrasive trimming ensures optimum resistor stability. Diamond sawed for dimensional uniformity and accuracy. Advanced processing techniques, and Hi-Rel construction assure optimum performance.

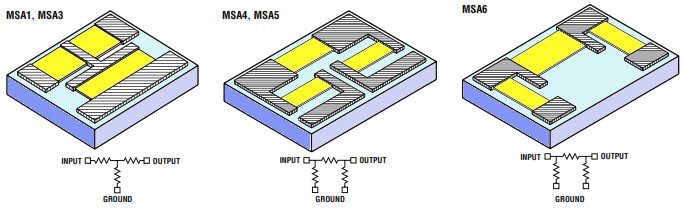

STYLE

CASE SIZE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

ATTENUATION RANGE

POWER RATING

FREQUENCY RANGE

MSA1

0403

0.320 (8.128)

0.240 (6.096)

0.030 (0.762)

-1dB to -20dB

1W

DC Through 10GHz

MSA3

0202

0.155 (3.937)

0.125 (3.175)

0.030 (0.762)

-1dB to -20dB

500mW

DC Through 10GHz

MSA4

0202

0.155 (3.937)

0.125 (3.175)

0.030 (0.762)

-1dB to -20dB

500mW

DC Through 10GHz

MSA5

0403

0.320 (8.128)

0.240 (6.096)

0.030 (0.762)

-1dB to -20dB

1W

DC Through 10GHz

MSA6

0101

0.090 (2.286)

0.050 (1.270)

0.011 (0.279)

-1dB to -20dB

125mW

DC Through 10GHz

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSA1 SERIESThick Film Chip Attenuator(PLEASE ADVISE TERMINATION MATERIAL, dB VALUE & METAL OPTIONS PLUS QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSA3 SERIESThick Film Chip Attenuator(PLEASE ADVISE TERMINATION MATERIAL, dB VALUE & METAL OPTIONS PLUS QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSA4 SERIESThick Film Chip Attenuator(PLEASE ADVISE TERMINATION MATERIAL, dB VALUE & METAL OPTIONS PLUS QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSA5 SERIESThick Film Chip Attenuator(PLEASE ADVISE TERMINATION MATERIAL, dB VALUE & METAL OPTIONS PLUS QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSA6 SERIESThick Film Chip Attenuator(PLEASE ADVISE TERMINATION MATERIAL, dB VALUE & METAL OPTIONS PLUS QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com

Thick Film Chip Attenuator Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.
