M.O.S. CHIP CAPACITORS (MSBIN & MSCC SERIES)

Thin film resistor arrays (MSRA, MSRB and MSRC) from Mini-Systems

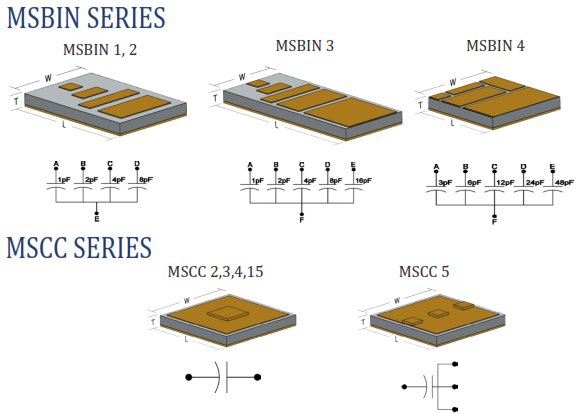

MSBIN SERIES

Mini-Systems, Inc. MSBIN series thin film binary array chip capacitors are designed to established industry standards. The MSBIN series offer greater flexibility in capacitance value selection for Hybrid and Microwave circuits.

CASE SIZE

STYLE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

TOTAL CAPACITANCE

TOLERANCE

RATED VOLTAGE

0203

MSBIN2

0.019” (0.482)

0.030” (0.762)

0.010” (0.254)

15pF

±10%, ±20%,

30VDC

0505

MSBIN3

0.044” (1.117)

0.044” (1.117)

0.010” (0.254)

93pF

±10%, ±20%,

93VDC

MSCC SERIES

Mini-Systems, Inc. MSCC series MOS thin film chip capacitors are designed to established industry standards. The MSCC series is offered in a variety of sizes for both Hybrid and Microwave circuits. Connection to associated circuitry is completed by wire-bonding to the top and epoxy or eutectic attachment to the back.

CASE SIZE

STYLE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

CAPACITANCE RANGE

TOLERANCE

0202

MSCC2

0.020” (0.508)

0.020” (0.508)

0.010” (0.254)

4.7pF to 10pF

11pF to 20pF

21pF to 70pF

±0.5pF

±5%, ±10%

±2.5%,±5%, ±10%

0404

MSCC4

0.040” (1.016)

0.040” (1.016)

0.010” (0.254)

25pF to 400pF

±2.5%,±5%, ±10%,

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSBIN SERIESBinary MOS Array Chip Capacitors(PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSCC SERIESMOS Thin Film Chip Capacitors(PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
M.O.S. Thin Film Chip Capacitor Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.
