THIN FILM ATTENUATORS (MSAT SERIES)

Thin film chip attenuators and surface mount attenuators (SMD) from Mini-Systems

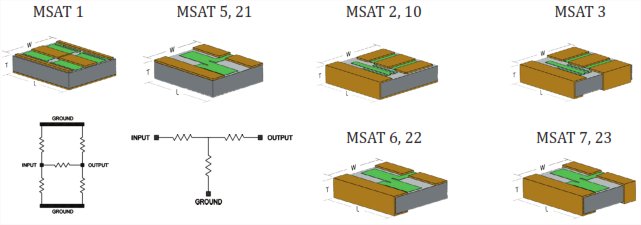

Mini-Systems, Inc. MSAT series discrete element Thin Film chip attenuators provide the design engineer with attenuators that are very accurate over operating frequencies from DC through 40 GHz. They offer the low noise, low stray capacitance and tight tolerance of Mini-Systems, Inc. Thin Film materials in compact sizes that make them ideal for applications where small footprints are required. MSAT series is offered in balanced pi or T-type styles.

An attenuator is a device that reduces the power of a signal without distorting its waveform. Attenuators are usually passive devices made from simple voltage divider networks. Switching between different resistances forms adjustable stepped attenuators and continuously adjustable ones using potentiometers. Used to lower voltage, dissipate power, or to improve impedance matching.

Attenuators can be found in applications measuring signals where a lower the amplitude of the signal is set at a known amount to enable measurements, or to protect the measuring device from signal levels that might damage it.

MSAT1 SERIES

CASE SIZE

TYPE

LAYOUT

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

POWER Quartz

POWER Al2O3

POWER AlN

POWER BeO

ATTENUATOR TYPE

ELEMENT TYPE

1008

1

Top Contact

0.100”(2.540)

0.080”(2.032)

0.010”(0.254)

25mW

125mW

500mW


1W


Pi

Discrete


How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

MSAT3, 22 & 6 SERIES

CASE SIZE

TYPE

LAYOUT

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

POWER Al2O3

POWER AlN

POWER BeO

ATTENUATOR TYPE

ELEMENT TYPE

0505

3

Surface Mount

0.050”(1.270)

0.050”(1.270)

0.020”(0.508)

125mW

1W

Not available

T

Discrete

0806

22

Half Wrap

0.077”(1.956)

0.061”(1.549)

0.015”(0.381)

250mW

Not available

2W

T

Lumped

1512

6

Half Wrap

0.148”(3.759)

0.122”(3.099)

0.025”(0.635)

2W

Not available

8W

T

Lumped

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSAT ATTENUATORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
MSAT Thin Film Attenuators Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.

ROHS Compliant Lead Free Solder Available
