Mini-Systems, Inc. MSMT series chip RSMT mini-surface mount resistors. These chips are often used in circuits where precision adjustments are required.

The RSMT series offers high stability, low noise, and low T.C.R. of Mini-Systems, Inc. proven thin film technology.

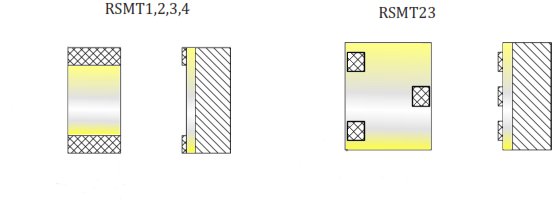

CASE SIZE	STYLE	TYPE	LENGTH “/mm	WIDTH “/mm	THICKNESS “/mm	# OF PADS	SIZE E	SIZE G	RESISTANCE RANGE	POWER RATING
0505	RSMT	1	0.050” (1.27)	0.050” (1.27)	0.050” (1.27)	2	0.015” (0.381)	0.050” (1.27)	1 to 100M	250mW
1206	RSMT	2	0.030” (0.762)	0.030” (0.762)	0.050” (1.27)	2	0.080” (2.032)	0.050” (1.27)	5 to 7.5M	350mW
0805	RSMT	3	0.030” (0.762)	0.030” (0.762)	0.050” (1.27)	2	0.120” (3.048)	0.060” (1.524)	1 to 100M	250mW
0603	RSMT	4	0.030” (0.762)	0.030” (0.762)	0.050” (1.27)	2	0.060” (1.524)	0.030” (0.762)	5 to 2M	125mW
0201	RSMT	23	0.034” (0.762)	0.034” (0.762)	0.050” (1.27)	3	0.112” (2.845)	0.090” (2.286)	1 to 500M	250mW

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - RSMT1 SERIESSurface Mount Resistor (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - RSMT2 SERIESSurface Mount Resistor (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - RSMT3 SERIESSurface Mount Resistor (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - RSMT4 SERIESSurface Mount Resistor (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - RSMT23 SERIESSurface Mount Resistor (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)

MINI-SMT Surface Mount Resistor Datasheet

MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.
