MSI have two types of Jumpers/Standoffs available. The MSJC series and the WAJC series.

MSJC SERIES

Mini-Systems, Inc. MSJC Series Chip Jumpers are ideal for use as zero ohm jumpers, bonding islands, and stand-offs for specific applications. Available in a variety of standard, as well as custom sizes for your applications.

CASE SIZE

TYPE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

MAX RESISTANCE

0201

21

0.020”(0.508)

0.010”(0.254)

0.005” (0.152mm)

20 Ohm

0303

3

0.030”(0.762)

0.030”(0.762)

0.010” (0.254mm)

10 Ohm

0404

4

0.040”(1.060)

0.040”(1.060)

0.010” (0.254mm)

10 Ohm

0805

75

0.075”(1.905)

0.050”(0.889)

0.010” (0.254mm)

15 Ohm

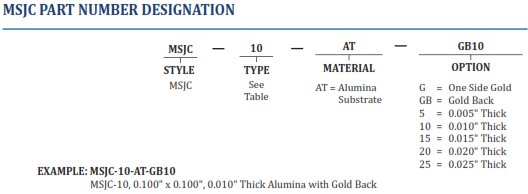

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition



WAJC SERIES

Mini-Systems, Inc. WAJC Series Chip Jumpers with nickel barrier are ideal for use as zero ohm jumpers, bonding islands, and stand-offs for specific applications. Available in a variety of standard, as well as custom sizes for your applications.

CASE SIZE

TYPE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm

MAX RESISTANCE

0202

7

0.020”(0.508)

0.020”(0.508)

0.010” (0.254mm)

10 Ohm

0404

2

0.035”(0.889)

0.035”(0.889)

0.010” (0.254mm)

10 Ohm

0505

4

0.050”(1.270)

0.050”(1.270)

0.010” (0.254mm)

10 Ohm

1005

6

0.100”(2.540)

0.050”(0.889)

0.010” (0.254mm)

20 Ohm

1505

9

0.153”(3.886)

0.050”(0.889)

0.010” (0.254mm)

30 Ohm

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSJC JUMPERS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - WAJC JUMPERS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Jumpers & Standoffs Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.

ROHS Compliant Lead Free Solder Available
