DUAL THIN FILM CHIP RESISTORS (MSIR, MSTF & MSDR SERIES)

Dual Chip Thin Film Resistors from Mini-Systems

Mini-Systems, Inc. Dual Resistor series supplies the design engineer with two discrete resistors on a single chip with either a common or isolated node. This configuration is ideal for applications where a closely matched tolerance, TCR and tracking are critical and space is a premium. This series provides the high stability, low noise, tight tolerance, ratio tracking, low TCR and TC tracking of Mini-Systems, Inc. proven Thin Film process. Connection to associated circuitry is accomplished by wire bonding to terminations located on the top side.

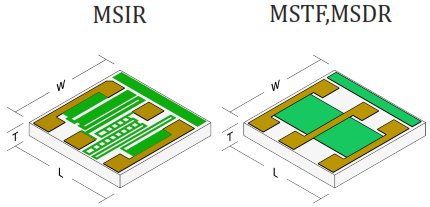

MSIR Series
MSTF Series
MSDR3 & MSDR4 Series

CASE SIZE

TYPE

LAYOUT

VALUES

LENGTH “/mm

WIDTH “/mm

LOW VALUES NiCr or TaN (STD TCR)


NiCr or [TaN] on Si or Quartz

NiCr or [TaN] on Al2O3 BeO or AIN

POWER Quartz

POWER Si Al2O3

POWER AIN

POWER BeO

0303

MSDR3

Center Tapped

R1≤R2

0.030”(0.762)

0.030”(0.762)

1<2

2-1M [1.2M]

1-125K [160K]

25mW

125mW

500mW

1W

0404

MSDR4

Center Tapped

R1≤R2

0.040”(1.016)

0.040”(1.016)

1<2

2-4M [6M]

1-125K [160K]

25mW

125mW

500mW

1W

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSDR3 DUAL CHIP RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSDR4 DUAL CHIP RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSTF DUAL CHIP RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSDR4 DUAL CHIP RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Dual Chip Thin Film Resistors Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.

ROHS Compliant Lead Free Solder Available
