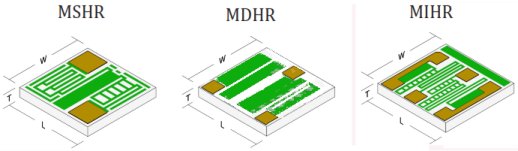

HIGH VALUE WIRE BONDABLE CHIP RESISTORS (MSHR, MDHR & MIHR)

High Value Wire Bondable Chip Resistors from Mini-Systems

Mini-Systems Inc. High Value Wire Bondable Chip Resistor series offers the design engineer a wide variety of styles with the high stability of Thin Film materials to meet the demands of cutting edge design requirements. Electrical connection to associated circuitry is accomplished through wire bonding to terminations located on the top side of the chip. Suitable die attachment methods are epoxy or eutectic attach.

CASE SIZE

TYPE

LENGTH “/mm

WIDTH “/mm

THICKNESS “/mm


RESISTANCE RANGE

POWER Quartz

POWER Si

0201

21

0.020”(0.508)

0.010”(0.254)

0.006”(0.152)

451K-1.8M

10mW

50mW

0202

122

0.020”(0.508)

0.016”(0.406)

0.010”(0.254)

1.1M-2M

25mW

125mW

0302

32

0.030”(0.762)

0.020”(0.508)

0.010”(0.254)

2.1M to 15M

50mW

250mW

0402

110

0.037”(0.940)

0.017”(0.432)

0.010”(0.254)

3.1M-20M

25mW

125mW

0404

4

0.040”(1.016)

0.040”(1.016)

0.010”(0.254)

11.1M-50M

70mW

350mW

0502

115

0.050”(1.270)

0.025”(0.635)

0.010”(0.254)

6.6M-45M

50mW

250mW

0603

63

0.060”(1.524)

0.030”(0.762)

0.010”(0.254)

11.1M-50M

100mW

500mW

0805

85

0.075”(1.905)

0.050”(1.270)

0.010”(0.254)

40.1M-100M

100mW

500mW

How To Order Mini-Systems Inc Parts - Chart and Part Number Definition

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSHR SERIES HIGH VALUE WIRE BONDABLE RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MSDR SERIES HIGH VALUE WIRE BONDABLE RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
Part Number - MIHR SERIES HIGH VALUE WIRE BONDABLE RESISTORS (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)PRICE QUOTE - email us at sales@epakelectronics.com
MSHR/MDHR/MIHR High Value Wire Bondable Thin Film Resistors Datasheet
MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.

ROHS Compliant Lead Free Solder Available
