Mini-Systems, Inc. Resistor Arrays are ideal for the hybrid designer seeking a SIP or DIP configuration in chip form. This series has three configurations, MSRA - isolated, MSRB - common bussed, and MSRC - series array. Arrays are offered in 3 to 12 resistor combinations.

All resistors are the same value and tolerance. They feature excellent resistance ratio tracking, low T.C.R., and T.C. tracking, and are of optimum use when space is a premium. Custom configurations available upon request.

MSRA SERIESIsolated Resistor Arrays
MSRB SERIESCommon Bussed Resistor Arrays
MSRC SERIESSeries Resistor Array

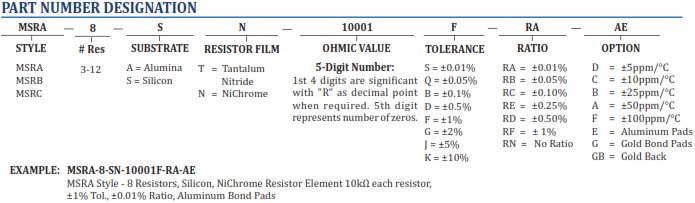

ORDERING INFORMATION (PLEASE ADVISE REQUIREMENTS & QUANTIY FOR QUOTE OR ASSITANCE)
Part Number - MSRA SERIESIsolated Resistor Arrays (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - MSRB SERIESCommon Bussed Resistor Arrays (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)
Part Number - MSRC SERIESSeries Resistor Arrays (PLEASE ADVISE SIZE, VALUE, TOLERANCE and QUANTITY)

MSRA, MSRB & MSRC Thin Film Resistor Array Datasheet

MOQ is typically 25pcs. Price breaks: 25-49, 50-99, 100-249, 250-499, 500-999, 1000-2499, 2500-4999, 5000-9999, 10K+
Samples may be available on request - please contact us with your requirements to check availability.
